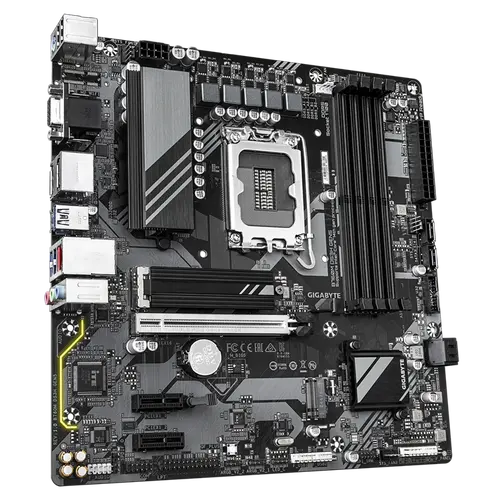

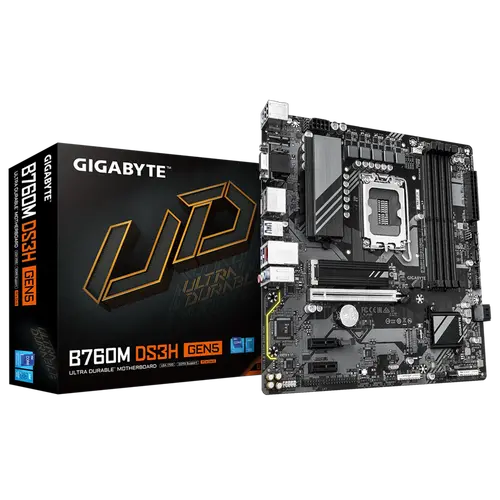

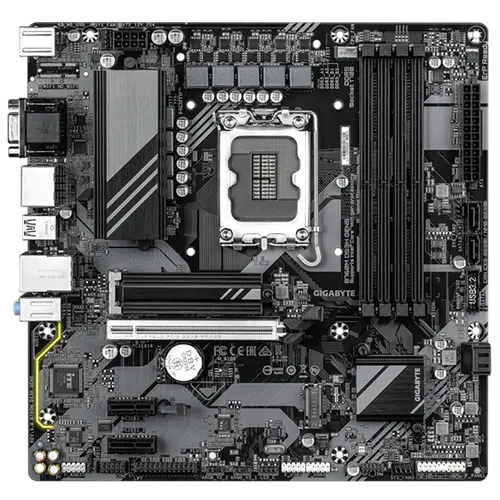

Дънна платка, GIGABYTE GB B760M DS3H GEN5 / LGA1700

Цена

€113⁸⁵ / 222⁶⁷ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 15€

+2 години: + 22€

Код: B760M DS3H GEN5 1.0
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

Support for up to quad-display at the same time

CPU's supported

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Expansion slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage

CPU:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Memory type

14th and 13th Generation Intel® Core™ i9/i7 Processors:

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:

Support for DDR5 4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Rear panel I/O

iTE® I/O Controller Chip

USB

Chipset:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x parallel port header

1 x S/PDIF Out header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

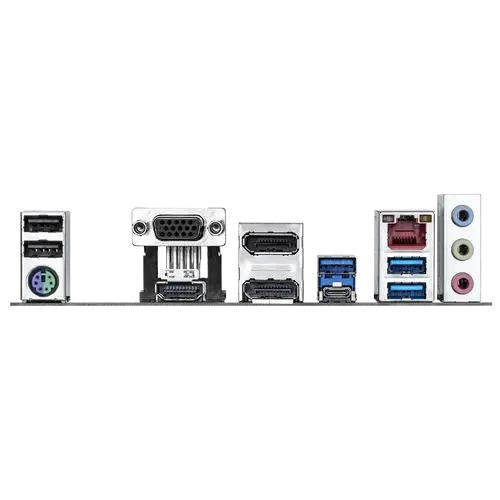

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port (Note)

1 x HDMI port (Note)

2 x DisplayPorts (Note)

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Lan

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor

Micro ATX Form Factor

24.4cm x 24.4cm

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty

36 Months

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5
Chipset	Intel® B760 Express Chipset
OS	Support for Windows 10 64-bit
OS	Support for Windows 11 64-bit
Warranty	36 Months
CPU's supported	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CPU's supported	L3 cache varies with CPU
Memory type	Dual channel memory architecture
Memory type	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type	14th and 13th Generation Intel® Core™ i9/i7 Processors:
Memory type	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules
Memory type	13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Memory type	Support for DDR5 4800/4400 MT/s memory modules
Form Factor	Micro ATX Form Factor
Form Factor	24.4cm x 24.4cm
Audio	Realtek® Audio CODEC
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Audio	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio	Support for S/PDIF Out
Rear panel I/O	iTE® I/O Controller Chip
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	Chipset:
Expansion Slots	CPU:
Expansion Slots	* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Expansion Slots	- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
Graphics	* Support for DisplayPort 1.2 version and HDCP 2.3
Graphics	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics	** Support for native HDMI 2.1 TMDS compatible ports.
Graphics	* Support for HDMI 2.1 version and HDCP 2.3.
Graphics	- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Graphics	Support for up to quad-display at the same time
Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
Graphics	- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Graphics	* Support for DisplayPort 1.2 version.
Features	Support for Q-Flash Plus
Features	Support for Q-Flash
Features	Support for GIGABYTE Control Center (GCC)
Features	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Features	Support for Smart Backup
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS	1 x 128 Mbit flash
I/O	iTE® I/O Controller Chip
Storage	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Storage	CPU:
Storage	Chipset:
Storage	- 4 x SATA 6Gb/s connectors
Storage	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Connectors	1 x 24-pin ATX main power connector
Connectors	1 x CPU fan header
Connectors	3 x system fan headers
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	1 x S/PDIF Out header
Connectors	1 x USB 3.2 Gen 1 header
Connectors	2 x USB 2.0/1.1 headers
Connectors	1 x serial port header
Connectors	1 x Q-Flash Plus button
Connectors	1 x reset jumper
Connectors	1 x Clear CMOS jumper
Connectors	1 x 8-pin ATX 12V power connector
Connectors	4 x SATA 6Gb/s connectors
Connectors	1 x RGB LED strip header
Connectors	2 x M.2 Socket 3 connectors
Connectors	Back Panel Connectors
Connectors	2 x USB 2.0/1.1 ports
Connectors	1 x PS/2 keyboard/mouse port
Connectors	1 x HDMI port (Note)
Connectors	1 x RJ-45 port
Connectors	3 x audio jacks
Connectors	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors	3 x USB 3.2 Gen 1 ports
Connectors	2 x addressable RGB Gen2 LED strip headers
Connectors	2 x DisplayPorts (Note)
Connectors	1 x parallel port header
Connectors	1 x D-Sub port (Note)
USB	Chipset:
USB	- 4 x USB 2.0/1.1 ports available through the internal USB headers
USB	Chipset+USB 2.0 Hub:
USB	- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
USB	- 2 x USB 2.0/1.1 ports on the back panel
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	LGA1700
Форм фактор	Micro-ATX
Чипсет	Intel B760
Тип памет	DDR5
Слотове за памет (count)	2
Максимална памет (GB)	128
M.2 слотове (count)	2
SATA портове (count)	4
PCIe x16 слотове (count)	1
Вграден Wi-Fi	Не
Скорост на LAN	2.5 Gbps
USB-C портове (count)	1
RGB подсветка	Не
Тегло	0.00кг

Дънна платка GIGABYTE B760M DS3H GEN5 (LGA1700, DDR5, Micro-ATX)

Изживейте следващото поколение производителност с дънната платка GIGABYTE B760M DS3H GEN5. Създадена за процесори Intel от 12-то, 13-то и 14-то поколение, тя предлага поддръжка на PCIe 5.0 и DDR5 памет за светкавично бърз трансфер на данни и многозадачност.

Ключови Предимства

Поддръжка на PCIe 5.0 — Първият слот PCIe 5.0 x16 и M.2 слот предлагат двойна честотна лента спрямо PCIe 4.0, готови за бъдещи графични карти и SSD.
DDR5 памет — Двуканална DDR5 с поддръжка на XMP 3.0 осигурява превъзходна скорост и ефективност за взискателни приложения.
2.5GbE LAN — Високоскоростна мрежа за гладко онлайн игри и прехвърляне на големи файлове.
Изчерпателна свързаност — Включва USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort и множество USB портове.
Ultra Durable дизайн — Доказана издръжливост с висококачествени компоненти и защита.

Технически Спецификации

Спецификация	Стойност
Сокет	LGA1700
Чипсет	Intel B760
Форм фактор	Micro-ATX
Тип памет	DDR5
Слотове за памет	2 (Dual Channel)
Максимална памет	128 GB
M.2 слотове	2 (1 x PCIe 5.0, 1 x PCIe 4.0)
SATA портове	4
PCIe x16 слотове	1 (PCIe 4.0 x16)
LAN	2.5 GbE Realtek
Wi-Fi	Не
USB-C портове	1 (USB 3.2 Gen2x2)
RGB подсветка	Не
